Why Is My Servo Drive Not Powering On? Causes and Repair Solutions

A servo drive not powering on can stop an entire production line and cause unexpected downtime. The issue may look simple at first glance but can hide deeper electrical or control-board failures that only become clear through professional inspection. Causes range from blown fuses and voltage fluctuations to faulty regulators or internal short circuits. Each problem demands different diagnostic steps, and misjudging them can lead to unnecessary component replacements or even new unit purchases. At UpFix, we understand how much production loss a single failed servo drive can cause. We specialize in electronic control system repair for industrial and automotive applications, restoring devices that many shops consider non-repairable. Accurate diagnostics are the key to minimizing cost and preventing repeat failures. If your servo drive refuses to power on, we encourage you to reach out to UpFix — we bring precise, fast, and reliable servo drive repair solutions designed to get your system running again.

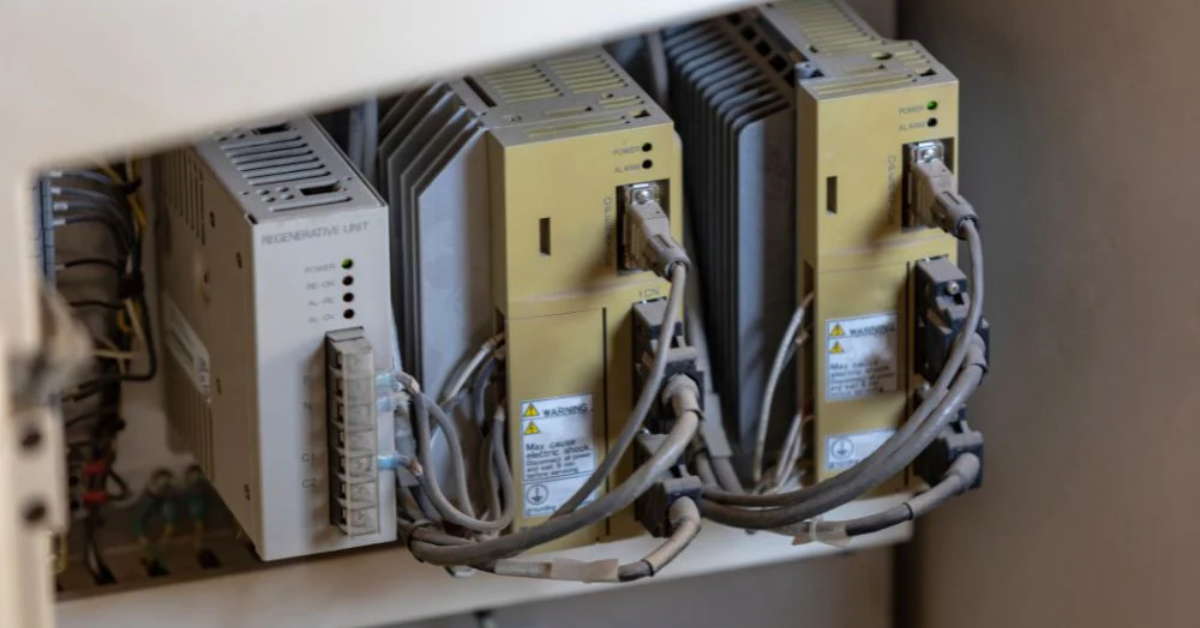

Understanding Servo Drive Power Systems

Servo drives form the control backbone of automation, robotics, and motion systems. Their power systems are highly sensitive and designed for precision. Understanding how they operate and how power flows through them helps identify why they might fail to turn on.

The Role of a Servo Drive

A servo drive regulates motor speed, torque, and position using constant feedback from sensors. It ensures smooth and accurate motion, making it critical for robotic arms, CNC tools, and packaging machines. The servo drive processes input commands from the control unit, amplifies them, and sends precise current to the motor windings. Stable power input and clean feedback signals are essential for maintaining synchronization. Any disruption in voltage or signal integrity leads to uneven performance or shutdown. When the drive doesn’t power on, it often points to faults in its power regulation path or logic section. A detailed analysis helps determine if the issue lies externally in the supply or internally on the board. Recognizing these interdependencies is essential for quick, safe restoration.

How Servo Drives Receive and Distribute Power?

Power management in servo drives is a precise and layered process. Below are key stages that define how energy flows, converts, and stabilizes inside the system. Each point highlights where issues can occur and why inspection is vital.

• Main Power Entry: Power enters through a three-phase AC line that passes through filters, relays, and converters before reaching internal circuits.
• AC to DC Conversion: Rectifiers transform AC into DC, supplying energy to the low-voltage logic circuits and control modules.
• Voltage Stability: Stable DC voltage maintains consistent signal processing and motor control accuracy.
• Protection Elements: A defective fuse or damaged converter can interrupt current flow, leading to complete power loss.
• Energy Storage: Internal bus capacitors store and release power during load variations, safeguarding delicate electronic components.
• Environmental Influence: Contamination or aging may cause shorts or leaks, interrupting voltage stability.
• Diagnostic Verification: During UpFix inspection, we check every stage — from filters to logic boards — to pinpoint exactly where power stops flowing.
• System Restoration: This systematic approach prevents unnecessary part replacement and ensures full operational recovery.

Common Causes of a Servo Drive Not Powering On

When your servo drive fails to start, it’s often due to either external supply issues or internal electrical problems. Environmental stress also plays a large role over time. Below are the most common scenarios we encounter during troubleshooting a servo motor problem.

External Power Issues

External faults usually originate from the power supply feeding the servo drive.
Typical causes include:

• Blown fuses or tripped circuit breakers that block voltage to the input terminals.
• Loose or corroded connections increasing resistance and preventing proper current flow.
• Unstable voltage or power surges that can activate safety interlocks or damage entry circuits.

Internal Electrical Failures

If the supply is stable but the unit stays dead, internal electrical faults are likely. A failed power-supply module or faulty transformer can prevent energy from reaching the control logic. Damaged capacitors, MOSFETs, or resistors may short internally, resulting in open circuits or protection trips. Burnt traces and connectors often indicate overloads or overheating. During repair, we measure continuity across power rails to detect isolated sections. Carbon residue or melted insulation can lead to leakage currents that disable startup. Our bench diagnostics at UpFix pinpoint these internal issues using oscilloscopes and in-circuit testers. Once isolated, components are replaced with OEM-grade equivalents and verified under simulated load.

Environmental and Operational Factors

Servo drives work in demanding industrial settings, where temperature, dust, and vibration can gradually degrade electronics. Moisture leads to corrosion or arcing between tracks. Dust accumulation insulates components, increasing thermal stress. Continuous vibration, especially in unbalanced machinery, can crack solder joints and cause intermittent failures. Long-term high-load operation fatigues components, particularly capacitors and voltage regulators. These conditions not only stop the unit from powering on but also shorten its lifespan. UpFix uses conformal coatings and vibration-resistant solder techniques to extend durability after each repair. Maintaining proper enclosure seals and airflow drastically reduces future incidents.

Advanced Troubleshooting Steps

Systematic troubleshooting ensures accuracy and safety. Always start with power verification and proceed to deeper board-level inspection only after confirming external integrity.

Step 1 – Check External Power Sources

Before opening the drive, verify all external inputs.
Key actions include:

• Using a multimeter to confirm line voltage and the status of circuit breakers.
• Ensuring the supply matches the servo drive’s rated input specification.
  Incorrect voltage can damage filters and regulators, while tripped breakers can mimic internal failure. At UpFix, we replicate this step before every repair intake. We also test ground resistance to prevent static buildup, which may silently harm control electronics. Once external power is stable, deeper diagnostics can begin safely.

Step 2 – Inspect Internal Power Path

After confirming input supply, remove the protective cover and inspect visually. Look for blown internal fuses, discoloration, or burnt odors. Examine DC bus capacitors for bulging or leakage and rectifiers for cracked housings. These elements are responsible for converting and stabilizing incoming voltage. If any appear damaged, they must be replaced with rated equivalents. Over-voltage events can cause multiple cascading faults within this path. We test each component using specialized ESR and diode analyzers to confirm reliability before reassembly. Restoring this section often revives the drive without needing deeper intervention.

Step 3 – Test Logic Power Section

If the main DC bus seems intact but no indicators light up, test the logic power rails. Measure 5V, 12V, and 24V outputs to determine if control circuits receive energy. Absence of these voltages usually points to a faulty regulator IC or driver transistor. These low-voltage lines power the CPU, communication ports, and safety circuits. Faults here can make the entire unit appear dead even when high-voltage sections work correctly. At UpFix, we reflow suspect regulators and verify ripple limits under load. This ensures stable digital communication once powered on. Accurate measurement of these small voltages is crucial before proceeding to complex diagnostics.

Step 4 – Evaluate the Control Board

If logic power is present but the system remains unresponsive, focus on the control board. Look for burnt resistors, damaged optocouplers, or cracked solder joints. Module connectors often loosen under thermal cycling, leading to partial contact. We recommend checking all modules for physical integrity and corrosion. When no visible damage appears, the problem may lie in hidden layers of the PCB or microcontroller circuits. At this point, professional bench-level diagnostics become essential. Sending the module to UpFix allows our team to simulate real-world load conditions and trace signal loss precisely. This prevents misdiagnosis and unnecessary spending on new parts.

Case Study – Restoring a Non-Powered Servo Drive

One of our industrial clients brought in a CNC servo drive that failed to power up despite good input voltage. Initial inspection ruled out external supply faults. Upon board-level analysis, our technicians discovered a burnt power-regulator IC and corroded connector pins caused by humidity exposure. The damaged IC prevented the logic section from receiving voltage, keeping the unit completely inactive. UpFix replaced the faulty components, repaired compromised PCB traces, and resealed the board using industrial-grade coating. After calibration and stress testing, the drive successfully powered up and operated under full load. The entire process took less than a week and saved the client over 70% compared to purchasing a new unit. This case demonstrates how specialized diagnostics and component-level repair can restore performance efficiently without long downtime.

How UpFix Repairs Servo Drive Power Failures?

Repairing a non-powered servo drive requires deep electronic expertise and controlled testing. Our methods ensure that every stage of the repair process produces reliable, repeatable results.

Precision Diagnostics

We begin by performing circuit-level testing to isolate the failure source. Each module — from the power supply to the control board — is analyzed under simulated conditions. Using oscilloscopes and current probes, we map out voltage flow to identify irregularities. Faulty regulators, shorted capacitors, and open resistors are replaced only after confirmation. Before shipping, we simulate full-load environments to validate stable operation. These detailed diagnostics prevent repeat breakdowns once the unit returns to the customer. Every result is documented for traceability and long-term reliability tracking.

Component-Level Repair Process

Our technicians carry out component-level repairs using advanced soldering and rework stations. We replace damaged fuses, rectifiers, IC regulators, and capacitors. Burned or open PCB traces are rebuilt using copper wire bridges to restore conductivity. All connections are re-soldered and inspected under magnification. After electrical restoration, we clean boards ultrasonically to remove residues and apply conformal coating for corrosion protection. This process ensures resilience against moisture, vibration, and temperature fluctuations. Once completed, the module is reassembled and ready for performance validation.

Testing and Quality Assurance

Every repaired unit undergoes a multi-stage verification. We conduct power-up tests, communication checks, and thermal stress trials. Logic functions and feedback signals are monitored using diagnostic software. The goal is to replicate field conditions before returning the product. Our quality control ensures plug-and-play readiness — customers simply reinstall the drive with no reprogramming required. Continuous monitoring throughout testing guarantees that output voltages and control loops perform as designed. This commitment to quality defines UpFix’s reliability record in the servo repair industry.

Supported Servo Drive Brands and Equipment

UpFix services a wide range of industrial and automation equipment.
We frequently handle the following brands and applications:

• Industrial: Yaskawa, Mitsubishi, Siemens, Allen-Bradley, Fanuc, ABB.
• Automation/Automotive: Bosch Rexroth, Parker, Baldor, Omron, SEW Eurodrive.
• Applications: CNC machines, robotics, conveyor systems, and hydraulic motion controls.

Even if your servo drive brand isn’t listed, we can usually perform a custom diagnostic repair using cross-reference schematics and component data. Our technicians adapt repair techniques across multiple series, ensuring compatibility and reliability. This flexibility makes UpFix the preferred choice for both OEM facilities and independent integrators seeking sustainable solutions.

Why Choose UpFix for Servo Drive Repairs?

Choosing the right repair partner determines how quickly operations can resume. Our decades of experience, efficiency, and certification make UpFix the logical solution for servo system restoration.

Watch this video to learn more about our repair standards.

Certified Technical Expertise

Since 2006, UpFix has completed over one million successful repairs across automotive and industrial sectors. Our technicians are IPC-certified, specializing in control-electronics rework and signal analysis. Using proprietary simulation platforms, we test each drive under actual operational conditions. This ensures consistent output, stability, and safety once reinstalled. Our reputation is built on rigorous standards and transparent processes. For anyone seeking a guide to servo maintenance, we provide resources and consultations to improve equipment lifespan. The same dedication that drives our repairs also supports your preventive maintenance goals.

Cost and Time Efficiency

We design our workflow to deliver 50–80% cost savings compared to OEM replacement. Most repairs are completed within 2–5 business days, depending on complexity. Our process eliminates the need for reprogramming — clients can simply reinstall and resume operation immediately. Fast turnaround helps prevent production losses and supply-chain delays. We also provide free evaluations and detailed failure reports for documentation. If your system is halted, contact us to initiate a servo drive repair order at UpFix and experience our precise, reliable service firsthand.

Watch a short demonstration to see how we test power-stage modules under load.

Customer Reviews and Testimonials

Satisfied clients consistently highlight the professionalism and technical accuracy of our team. Every successful restoration reflects our commitment to reliability, transparency, and efficiency. Below are common themes from verified UpFix customers:

10/11/2025

worked perfectly



-Bernard M.

9/30/2025

Exceptional customer service and high quality repair



-Jessica

9/30/2025

Excellent customer service and work quality.



-JVIcki R.

FAQs – Servo Drive Power Issues

Our team often receives questions about non-powering servo drives. Here are the most frequent ones answered briefly.

Q1: What’s the most common cause of a servo drive not powering on?
Blown fuses or internal regulator faults are the leading causes. Environmental damage like moisture and vibration ranks close behind.

Q2: Can UpFix repair servo drives from any brand?
Yes. We handle both mainstream and specialized brands through cross-compatible diagnostics and component sourcing.

Q3: How long does the repair process take?
Typical turnaround is two to five business days, depending on part availability and complexity.

Q4: Will my servo drive need reprogramming after repair?
No. All repairs preserve firmware and calibration data, allowing plug-and-play reinstallation.

Q5: What testing does UpFix perform before returning my unit?
Each drive undergoes power-up verification, communication testing, and full-load thermal simulation to ensure field reliability.

Preventive Maintenance Tips for Servo Drives

Proactive care greatly reduces future downtime.
We recommend:

• Check line voltage stability and grounding regularly to prevent surge damage.
• Keep the drive enclosure clean and dry to avoid corrosion and dust accumulation.
• Schedule thermal and vibration inspections every six to twelve months to detect stress early.
• Maintain proper load balancing to avoid overcurrent conditions.
• Send units for proactive testing if you notice delayed startup or intermittent faults.

Implementing these steps extends the lifespan of both the servo drive and the connected machinery, reducing total ownership cost.

Call to Action – Get Your Servo Drive Back Up and Running with UpFix

A non-powered servo drive doesn’t always require full replacement. Most failures originate from repairable causes that professional technicians can identify and fix quickly. At UpFix, our combination of diagnostic precision, certified expertise, and rapid turnaround ensures your system returns to service fast. Start your servo drive repair order online at UpFix.com or contact our support team at 888-979-9343. Our technicians will guide you through packaging, evaluation, and shipping.

Join the UpFix forum for insights, maintenance discussions, and expert advice directly from our engineers. Together, we keep your automation running at full potential.

Conclusion – Powering Your Production Back to Life

Servo drives fail to power on for many reasons, from external supply faults to internal regulator damage or environmental degradation. Misdiagnosing these issues can lead to costly replacements and extended downtime. At UpFix, we specialize in identifying the exact cause, repairing it at the component level, and validating every fix under realistic load tests. Our approach restores servo drives to like-new functionality while saving up to 80% in cost and reducing lead times drastically. Each unit undergoes full inspection, documentation, and protection against future failures. With over a million successful repairs, our experience speaks through performance and reliability. When your servo drive refuses to power on, remember there’s always a smarter option. UpFix powers it back to life — precisely, efficiently, and confidently.
