From Routine to Risk: Fix the Cluster
Picture a busy school morning. Buses roll out in the half-light, drivers make their first stops, and that familiar hum keeps everything on time. Now picture the same morning with a gauge cluster that flickers, freezes, or goes dark. The speedometer drops to zero, the fuel gauge lies, the warning lights don’t show—or won’t turn off. Suddenly “routine” turns into second-guessing: How fast am I going? Do I have fuel for this route? Is that engine warning real or just the dash playing tricks? That’s not just annoying. It’s a safety problem that ripples through schedules, families, and intersections.
At UpFix, we repair the original Blue Bird gauge cluster you already own and trust. We don’t mask symptoms—we fix the electronics that actually fail, then send your unit back plug-and-play so drivers get accurate speed, fuel, temperature, and warning lights again. That accuracy matters. It helps keep school districts safe by reducing roadside surprises, keeps your kids safe with predictable vehicle behavior, and keeps the roads safe by making bus traffic easier for everyone to read
We know how districts operate: PO billing, tax-exempt orders, asset-tag matching, bulk RMAs, clear status updates. The goal is simple—fewer unplanned bus swaps, calmer curbs, steadier routes. And while this post is focused on gauge clusters, remember the other common issue we see in Blue Bird fleets—the Allison Transmission Control Module (TCM). If you’re fighting “Shift Inhibited” or limp mode, we repair TCMs too, returning your original module plug-and-play with your calibration intact. (More on that later; for now, let’s get the instruments right.)
What a Gauge Cluster Does and why failures get messy
The cluster is the driver’s truth panel. It collects signals from sensors and the vehicle network and turns them into speed, fuel level, engine temperature, oil pressure, charging status, and warning lights. When it’s healthy, the information is simple and trusted. When it’s not, small errors become big problems—like misjudged speed near crosswalks, unexpected stops from “phantom” warning lamps, or surprise fuel shortages mid-route.
Why these fail on Blue Bird buses:
-
Heat and vibration loosen tiny solder joints and headers over time (the cluster lives a hard, bouncy life).
-
Aging stepper motors (the little motors that move needles) get sticky or lose their “zero.”
-
Backlight LEDs fade or flicker, making the panel unreadable in low light.
-
Power regulation on the cluster’s board sags under load (weak capacitors), causing random resets or blank screens.
-
Moisture and dust creep in, corroding connectors or traces and causing intermittent behavior.
Not sure it’s the cluster? Describe Your Symptoms and we’ll help you confirm.
Common Symptoms You’ll Recognize
-
Speedometer reads zero or jumps around; driver can’t trust speed.
-
Fuel gauge sticks, drops to empty, or never reaches full; fuel stops become guesswork.
-
Backlighting flickers, some sections dim or go dark; hard to read at dawn or dusk.
-
Warning lights stuck on—or won’t light at all; false alarms or missed alerts.
-
Random resets or full blackout, then it “comes back” over bumps; classic loose or cracked joints.
When multiple gauges misbehave together—or the panel resets when you tap the dash—that’s a strong sign the cluster itself (not the sensors) is at fault.
Case Study #1
A district sent a Blue Bird with a speedometer that drifted and then flatlined on warm days. Fuel and temperature were a little off too, and the backlight looked patchy.
What we found: Aging stepper motors were losing position, and the cluster’s low-voltage supply dipped as the bus warmed up. A few header pins showed the beginning of solder cracks.
What we did: Replaced the failing steppers, refreshed the power section (capacitors), reworked header joints, and stabilized the backlight LEDs. We ran sweep tests for all needles, verified telltales, and confirmed stable power rails.
Result: Clear, stable readings, no more “mystery speed,” and a happier driver. The district scheduled two more clusters the following week.
Our Process at UpFix (built for fleets)
-
Intake & Bench Test

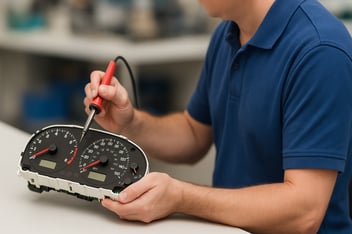

We power the cluster on the bench and verify symptoms—backlight stability, needle sweeps, warning lamps, and power integrity. This separates a true cluster fault from a sensor or wiring issue. -
Careful Disassembly
Lenses, tabs, and needles are removed without damage. (On some clusters, needle shafts are fragile—technique matters.) -
Board-Level Evaluation
We inspect for cracked/cold solder joints, weak capacitors, failing LEDs, and stepper motor wear. Corrosion paths are mapped and cleaned. -
Precision Repairs
-
Replace stepper motors that stick or drift.
-
Restore backlighting (LEDs) for even, readable illumination.
-
Rework suspect solder joints, especially on headers and power devices.
-
Refresh power regulation so the panel doesn’t reset or dim.
-
-
Calibration & Validation
Needles are set at true zero, full sweeps are run, warning lamps verified, and the display is checked for clarity. -
Final QC & Plug-and-Play Return
Your original cluster goes back in—no coding, no “almost right” replacement. Labeling by bus number/VIN keeps your paperwork clean.
Case Study #2 — “Gone Dark at Dismissal”
Another Blue Bird’s cluster would go completely dark near the end of afternoon routes. The driver learned to “thump” the dash to bring it back—until that stopped working.
What we found: Heat and vibration had cracked several power-supply joints, and some backlight LEDs were failing intermittently. There was light corrosion near one connector.
What we did: Reworked power joints under magnification, replaced weak LEDs, cleaned and treated the corroded area, and ran a thermal soak test.
Result: No more blackouts. The district noted calmer end-of-day traffic because the driver wasn’t trying to nurse a dying dash while kids were boarding.
When It’s Not the Cluster
It happens: a truly bad sensor, a wiring harness open, or a charging system fault can look like a dead gauge. If you see one gauge failing alone (say, only oil pressure) and tapping the dash does nothing, test that sensor/wire first. If several gauges and the backlight are off together—or the cluster reacts to bumps—the fault is likely inside the cluster. Either way, tell us what you’re seeing; we’ll help you decide what to send.
Yes, We Still Fix TCMs Too
If you’re also seeing “Shift Inhibited,” limp mode, harsh or delayed shifts, or intermittent comms on Blue Bird buses with Allison transmissions, that’s separate from the cluster. We repair your original TCM at the component level and return it plug-and-play with your calibration intact. Many districts bundle cluster and TCM repairs so buses come back stable across the board.
How to Send Your Cluster to UpFix
Remove only the gauge cluster (unless we ask for more). Protect the lens and connector with soft wrap; pack snugly so it can’t slide around. Inside the box, include:
-
District name, contact person, phone, and email
-
Bus number and/or VIN
-
Year/make/model
-
A short symptom note in plain language (e.g., “speedometer drops to zero warm,” “backlight flickers,” “panel resets over bumps”)
Use the ship-to address on your order confirmation. If you’re local, you can drop off during posted lobby hours. For fleets, we can mirror your asset tags on return labels, keep RMAs organized, and provide status updates so you’re not chasing anyone.
FAQs
Will we need programming after repair?
No. You’re getting your original cluster back plug-and-play.
Can a charging or ground issue cause similar symptoms?
Yes. Always verify system voltage and grounds—especially if the problem changes with RPM or lights.
Do you repair backlights and dead pixels?
Yes. We replace failing LEDs and address power regulation so illumination is even and reliable.
Can you handle multiple units at once?
Absolutely. Bulk RMAs are normal for districts—clear tracking and status updates included.
Do you warranty the repair?
Yes. Ask for the current term for clusters; we stand behind the work and test every unit before it leaves.
A drifting speedometer, a lying fuel gauge, or a dash that goes dark can turn an ordinary route into a scramble. Accurate, readable instruments aren’t a luxury; they’re how a driver keeps speed in check by a crosswalk, knows there’s fuel for the last loop, and sees a warning light in time to pull off safely. Fixing the cluster fixes the part of the bus the driver looks at the most.
UpFix restores your original Blue Bird gauge cluster at the component level—stepper motors, backlight LEDs, power regulation, and solder joints—then validates the repair with sweep tests, lamp checks, and thermal runs before it ships. Because it’s your cluster, it goes back in plug-and-play with no coding surprises. That means fewer roadside stops, steadier schedules, and a calmer line of cars at pickup and drop-off. It’s one of the simplest ways to help keep school districts safe, your kids safe, and the roads safe—every single day.
Route-Ready Again: Next Steps
If you’re facing flickers, false readings, or a panel that needs a thump to wake up, write down the symptoms, pull the cluster, and send it in. If you’re also battling Allison TCM issues—“Shift Inhibited,” limp mode, or harsh shifts—we handle those too, and many districts bundle both to stabilize the whole bus. Tell us what’s happening, and we’ll guide you to the right repair path.
