Fixing CAN Communication Faults in Agricultural Machines

Modern agricultural machinery is equipped with advanced control systems that rely on the Controller Area Network (CAN) bus to synchronize communication among various modules. When this system fails, multiple components—from the engine to the transmission—may stop functioning or display confusing fault codes. Unlike mechanical breakdowns, CAN failures are purely electronic, requiring expertise in circuit-level diagnostics and repair. At UpFix, we specialize in repair services for your tractor  and loader, focusing on restoring CAN communication across all major agricultural brands. If your machine is experiencing these issues, reach out to UpFix for professional repair solutions and get your equipment back in operation efficiently.

Understanding CAN Bus Communication in Agricultural Systems

Modern farm machinery depends on electronic communication to operate smoothly and efficiently. The CAN bus acts as the nervous system, linking multiple modules that must coordinate in real time. Understanding how it works helps identify where failures begin and how to address them quickly. Below, we explore the fundamentals of CAN bus communication and why it is essential in agricultural equipment. This knowledge ensures reliable performance, safer operation, and more accurate diagnostics across all systems.

What Is the CAN Bus Network?

The Controller Area Network (CAN) serves as the communication backbone in agricultural machinery. It links critical modules such as the engine, transmission, hydraulic controllers, GPS systems, and displays into one integrated network. Data travels between these components within milliseconds, ensuring precise synchronization of all machine operations. Each control unit sends and receives digital messages rather than relying on mechanical linkages. This allows for faster performance, greater reliability, and easier diagnostics. Without the CAN bus, modern agricultural systems could not function cohesively. Our technicians at UpFix work directly with these systems daily, ensuring signal integrity and accurate communication.

Why CAN Communication Is Critical in Agriculture?

Agricultural machinery such as tractors and combines depends on real-time data for functions like speed, hydraulic pressure, steering, and implement control. A disruption in this communication can lead to transmission controller malfunctions in agricultural equipment, triggering multiple false alarms or complete shutdowns. Even a minor fault in one module can cascade across the entire system. To mitigate these risks, UpFix employs real-time CAN simulation tools that replicate machine environments and identify faulty modules. This technology ensures that only the affected units are repaired, reducing downtime and repair costs while restoring your machinery’s reliability.

Common Symptoms of CAN Bus Failure in Agricultural Equipment

When communication lines fail inside a machine, certain signs immediately reveal that the CAN system is struggling. Understanding these symptoms helps technicians and operators act quickly before greater damage occurs. Identifying warning indicators early ensures efficient repair and minimizes downtime. The next discussion outlines the practical symptoms that typically accompany CAN network issues in agricultural equipment. Recognizing them can save valuable time and prevent operational losses.

Functional Symptoms

When a CAN network malfunctions, it often manifests through the most common agricultural equipment issues such as multiple unrelated system errors. Displays may show warnings like “No Communication,” “No Signal,” or “Module Offline.” Diagnostic tools may fail to connect to certain controllers, leaving technicians unable to perform accurate scans. Essential modules like GPS, ECU, or hydraulic systems may become unresponsive or exhibit intermittent operation. Over time, these intermittent failures can progress into a total network collapse, halting operations completely. Our diagnostic process identifies these symptoms early, preventing costly downtime.

Error Codes and Messages You May Encounter

CAN failures often produce error messages such as SPN 639 FMI 2/9 (CAN link lost) or SPN 627 FMI 9 (Display-controller link failure). Other messages include “Bus Error,” “Network Timeout,” or “Multiple Systems Offline.” These errors point to network integrity issues rather than isolated module faults. Misinterpreting them can lead to unnecessary module replacements. At UpFix, we analyze these codes in conjunction with oscilloscope readings and data traces to pinpoint the real fault source. Our systematic approach ensures that we address the cause, not just the symptom, of each communication failure.

Root Causes of CAN Bus Communication Failures

Every CAN issue has an underlying cause, whether mechanical stress, electrical instability, or environmental interference. Determining these sources allows for accurate diagnosis and long-term fixes. Knowing what triggers network interruptions also helps prevent them in the future. Below are the most frequent reasons for CAN bus communication failures in agricultural machinery, explained through their different origins. Understanding them provides the foundation for consistent performance and reliable operation.

Hardware-Level Failures

Hardware damage is a frequent cause of CAN communication problems. Shorted or overloaded CAN transceivers, damaged ESD protection chips, or cracked solder joints can interrupt communication. Moisture and corrosion inside circuit boards also create unwanted resistance or short circuits. Over time, repeated thermal cycles weaken solder integrity, causing intermittent connectivity. These faults require precise micro-soldering and rework. UpFix’s repair process includes replacing defective components and resealing the board to prevent future failures. Our expertise ensures lasting performance even in harsh agricultural environments.

Electrical and Network Problems

Electrical faults can arise from voltage spikes, poor grounding, or bus overload caused by malfunctioning modules. A single module transmitting corrupted data can bring down the entire network. Incorrect termination resistance also disrupts CAN line balance, preventing proper voltage differential between high and low lines. These issues can mimic hardware failures and confuse diagnostic tools. Our technicians perform detailed electrical analysis to verify resistance, continuity, and grounding integrity before replacing any components. This ensures that each repair restores true electrical balance to the system.

Environmental and Operational Factors

Farm machinery operates in some of the harshest conditions possible. Dust, humidity, and vibration contribute to long-term solder degradation and connector wear. Unauthorized wiring modifications during sensor or module replacement can introduce cross-talk or reverse current flow. Additionally, backfeed current from faulty power systems may damage sensitive CAN circuits. At UpFix, we evaluate environmental wear as part of every repair. Our process includes cleaning, re-coating, and resealing boards to withstand exposure and maintain long-term reliability in the field.

Advanced Diagnostic Process for CAN Bus Failures

Troubleshooting a CAN communication failure requires a precise, methodical approach. Technicians rely on specialized instruments and systematic isolation methods to pinpoint the problem. Accurate diagnostics reduce unnecessary repairs and restore confidence in the system. In the following steps, we describe how our team locates faults quickly and restores normal operation. Each process ensures accuracy, efficiency, and measurable improvement in network health.

Step 1 – Identify the Network Fault

The first step in CAN diagnostics is verifying signal integrity. Using a CAN analyzer or oscilloscope, we measure voltage levels and waveform consistency across high and low lines. This identifies whether the fault is isolated or systemic. If the network is down entirely, our technicians segment the system and test each branch. Proper waveform patterns confirm healthy communication; deviations indicate a specific module or wiring fault. This initial stage is critical in narrowing down the source of the problem accurately.

Step 2 – Isolate the Faulty Module

Once abnormalities are identified, we disconnect each module one at a time to locate the fault. Monitoring resistance between CAN high and low lines helps identify which unit disrupts the signal. Deviations from the standard 60-ohm resistance suggest short circuits or open lines. We record voltage levels after each disconnection to confirm isolation. This step ensures that only the defective module is targeted for repair, minimizing downtime and unnecessary component replacement.

Step 3 – Module-Level Inspection

After isolating the fault, we perform a detailed board-level inspection. Burned CAN drivers, failed integrated circuits, or microfractures in solder joints often emerge during this phase. Our engineers verify continuity across all critical pathways and test the transceiver’s response under load. If damage is detected, the module undergoes UpFix’s full bench testing process, including rework and functional simulation. Once repaired, each unit is tested again to confirm complete CAN network stability before being shipped back to the client.

Case Study – Fixing a CAN Communication Failure on a John Deere Tractor

A John Deere tractor arrived at our facility after the operator reported “No Comm with Transmission” and multiple module failures. Initial diagnostics revealed that the ECU transceiver had shorted the entire CAN network. This prevented communication between all subsystems, including hydraulics and GPS modules. Our technicians at UpFix replaced the damaged transceiver IC, repaired board traces, and applied industrial-grade sealant to prevent corrosion. Post-repair testing confirmed restored communication across all modules. The client saved over 70% compared to OEM ECU replacement and reduced downtime significantly. This successful repair demonstrates UpFix’s advanced diagnostic and technical capabilities in agricultural electronics.

How UpFix Repairs CAN Bus Communication Failures?

Repairing CAN communication faults demands expertise, precision, and advanced diagnostic tools. At UpFix, we approach each case with a systematic process designed to restore full functionality. Understanding our repair stages helps equipment owners gain confidence in the quality and reliability of their machinery. The following explanation introduces the detailed phases we follow when repairing CAN bus issues in agricultural modules. Each step ensures accuracy, consistency, and dependable long-term performance.

Diagnostic Testing and Analysis

Every repair begins with a full CAN network simulation using proprietary diagnostic equipment. We monitor line signals, voltage integrity, and noise interference under simulated field conditions. This process allows us to map communication errors and identify weak transceivers. We document all findings in detailed diagnostic reports for transparency. Our analysis ensures that each repaired module meets or exceeds OEM performance standards before being returned to service.

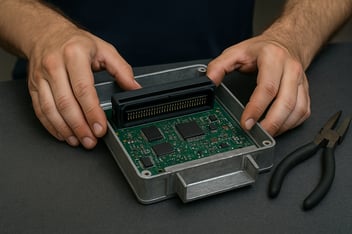

Component-Level Repair and Rework

Once the fault is confirmed, we move to component-level rework. Damaged transceivers, ICs, and ESD protection chips are replaced using IPC-certified soldering techniques. We reflow weakened joints, restore damaged traces, and apply new coatings to prevent oxidation. Each repair undergoes visual inspection and continuity testing. This meticulous process ensures that repaired boards can endure vibration, heat, and environmental exposure common in agricultural machinery. Our precision guarantees long-term reliability and improved communication performance.

Testing and Verification

After reassembly, modules undergo bench testing with multiple CAN nodes operating simultaneously. This replicates real-world load conditions, ensuring the repaired unit communicates flawlessly. We verify termination accuracy and data integrity over extended test cycles. Once approved, modules are packaged and shipped back plug-and-play ready, requiring no additional programming. UpFix’s streamlined process ensures quick turnaround while maintaining exceptional repair quality.

Common Modules Affected by CAN Failures

Different modules throughout the machinery network can experience CAN-related interruptions. Identifying which components are prone to failure helps operators focus maintenance efforts effectively. Understanding these areas improves diagnostics and shortens repair cycles. Here we detail the primary modules most affected by communication faults in agricultural systems. Awareness of these helps ensure stable and coordinated operation across all equipment. CAN-related issues often affect a wide range of components across agricultural systems, including:

• Engine Control Units (ECUs)
• Transmission Controllers
• Hydraulic and PTO Control Modules
• HVAC Boards and Display Systems
• GPS, Guidance, and Rate Controllers
• Instrument Clusters and Monitors such as GreenStar, Pro 700, and Trimble. UpFix supports modules from major manufacturers including John Deere, Case IH, New Holland, Kubota, AGCO, Fendt, and Massey Ferguson. Regardless of the brand, our approach remains the same: restore communication accuracy and reliability across the entire CAN network.

Why Choose UpFix for CAN Bus Module Repair?

Choosing a repair provider for advanced agricultural electronics requires confidence in both skill and technology. UpFix stands out by combining extensive experience with specialized diagnostic equipment tailored for CAN systems. Understanding why our services make a difference ensures that equipment owners make informed decisions about their repairs. The introduction below outlines what sets UpFix apart from competitors in precision, reliability, and cost-effectiveness. Each aspect demonstrates how our expertise transforms complex CAN communication failures into dependable long-term solutions.

Proven Expertise and Technology

Since 2006, UpFix has completed over one million successful electronic repairs. Our IPC-certified technicians are experts in diagnosing CAN-related issues and restoring complete communication functionality. We use proprietary simulation and analysis tools designed specifically for agricultural electronics. These tools allow us to replicate live CAN networks, ensuring precision during every phase of repair. Our commitment to quality and technology leadership sets us apart as the industry’s preferred repair partner.

Cost and Time Efficiency

At UpFix, we understand that downtime impacts profitability. That’s why our repairs typically save clients 50–80% compared to OEM replacements. Our 2–5 business day turnaround ensures machines are back in the field quickly. Most modules require no reprogramming after repair, simplifying reinstallation. For fast, affordable, and professional repair services for your Tractor & Loader, contact UpFix today. We’ll deliver reliable solutions tailored to your equipment’s specific needs.

FAQs – CAN Bus Failures in Agricultural Equipment

Operators often encounter uncertainties when diagnosing communication problems in their machinery. Knowing what to expect helps them make better repair and maintenance decisions. Understanding these common questions also prevents unnecessary replacements and costly downtime. The overview below introduces key concerns many owners face when dealing with CAN network issues. Each answer provides practical guidance for quick and informed troubleshooting.

Q1: What causes CAN bus failures in farm machinery?
Failures often result from damaged transceivers, corrosion, electrical surges, or improper grounding. Environmental stress such as vibration and humidity also contributes to CAN degradation.

Q2: How can I tell if a module or wiring is at fault?
A qualified technician uses a CAN analyzer to measure voltage differentials. If disconnecting a module restores communication, that unit is typically the cause.

Q3: Can I continue operating my machine with a “Bus Error”?
Operating with a bus error risks further damage to the network and may trigger false alarms. It’s best to shut down and seek professional repair immediately.

Q4: Does UpFix repair modules from all agricultural brands?
Yes, UpFix services ECUs, controllers, and display modules from all leading brands, including John Deere, New Holland, and AGCO.

Q5: How long does the repair process take?
Standard turnaround time is 2–5 business days, depending on module complexity and parts availability.

Preventive Maintenance Tips for CAN Systems

Proper maintenance can prevent costly downtime caused by CAN network issues. Proactive inspection and cleaning reduce the likelihood of electrical or communication disruptions. These measures also extend the life of each component involved in data transmission. Below are essential recommendations designed to strengthen the system and enhance long-term dependability. Following them can help maintain peak efficiency in your farm machinery. To prevent CAN failures, regular maintenance and inspection are crucial. Start by checking all connectors for signs of corrosion or moisture ingress. Avoid jump-starting equipment without surge protection, as voltage spikes can destroy CAN drivers. Ensure wiring harnesses are shielded and properly grounded. Perform scheduled CAN line integrity testing, especially for machines that operate in extreme environments. Finally, send modules for preventive diagnostics following flooding or electrical surges. UpFix offers preventive evaluations that help maintain optimal communication performance year-round.

Customer Testimonials and Real-World Feedback

Client experiences highlight the tangible results of professional electronic repair. Farmers and operators share valuable feedback that demonstrates real-world benefits. Their stories reflect the accuracy, affordability, and speed of UpFix’s services. The upcoming examples illustrate how dependable module restoration enhances productivity in the field. These perspectives reinforce the trust customers place in our expertise. UpFix clients consistently report improved reliability and reduced downtime following module repairs. Farmers and fleet operators appreciate the cost savings and plug-and-play convenience of our services. Many note that UpFix’s detailed diagnostic reports enhance their understanding of machine health. Customers also highlight our responsive support team and transparent repair process. These testimonials reaffirm our commitment to precision, quality, and long-term customer satisfaction.

9/2/2025

Everything was good on service



-Mauricio M.

10/11/2025

worked perfectly



-Bernard M.

9/10/2025

Excellent customer service and work quality.



-Vicki

Restore CAN Communication with UpFix

If your farm machinery is suffering from CAN communication problems, remember that these issues are fully repairable. Our experienced technicians can diagnose and fix even the most complex failures quickly and cost-effectively. Start a repair order online or call UpFix at 888-979-9343 today for reliable fixing of your tractor and loader. You can also visit our open forum for in-depth discussions with experts and other operators. Smart Repairs. No Guesswork.

Conclusion: Trust UpFix to Keep Your Machines Connected

CAN bus failures can cripple machinery performance, leading to costly downtime and misdiagnosed issues. With UpFix’s deep experience and advanced diagnostics, we provide comprehensive repairs that restore system integrity and reliability. Choosing repair over replacement means faster turnaround, lower costs, and sustainable operation. Stop chasing fault codes — let UpFix restore your machine’s communication and get you back to full productivity.
