Why Your Treadmill Control Board Has Power but No Motor Output

What Does “Control Board Has Power but No Motor Output” Really Mean

Some treadmill issues can be confusing. The machine looks powered, but there's no movement. We address some of the most common issues and how to troubleshoot them in the following sections.

Distinguishing Between Console Power and Motor Power

The console and low-voltage electronics may still function while the motor drive stage remains completely inactive. In these cases, the treadmill won’t move, but all lights and buttons continue working normally.

This happens because components like the display and safety sensors operate on low-voltage rails such as 5V or 12V. Those voltages can still be present even if the FETs are no longer switching or delivering current to the motor. This is often a clear sign of a partial control board failure.

How does the Control Board interface with the Motor?

Your treadmill’s control board receives a speed command from the console. That signal flows into the driver circuit, which sends gate signals to a group of power FETs. These FETs then switch high DC voltage to the motor terminals.

If any part of this chain fails, the result is a powered console with zero motor output. That’s why understanding the internal motor drive path is so important.

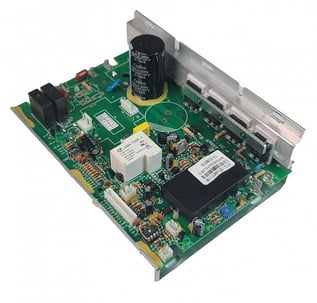

Inside the Motor Drive Section – Driver Circuit and FET Bank

The motor drive stage is responsible for actual belt movement. It consists of tightly integrated high-power circuits.

What does the Driver Circuit do?

The driver circuit controls the FETs by sending accurate, isolated gate signals. These signals determine when the FETs turn on or off and for how long.

Proper timing and voltage levels are critical for controlling acceleration and protecting the motor. If the driver circuit fails, the FETs receive no commands and remain off. As a result, the motor receives no voltage, even though the treadmill appears powered on.

The FET Bank as the High-Stress Engine of the Board

The FET bank acts as the board’s power stage. These components handle high-current DC switching under heavy loads.

Whenever you accelerate, change speeds, or run at maximum incline, the FETs absorb significant electrical stress. Over time, repeated voltage spikes, overheating, and constant load cycles can wear them down.

FETs can fail open, resulting in no motor movement, or fail shorted, which may trip the breaker. Both are common signs of motor drive failure.

Common Technical Causes When the Control Board Has Power but No Motor Output

Several issues can cause a treadmill to power on without driving the motor. Here are the most common failures our technicians diagnose.

1. Failed Driver Circuit Components

Burned driver ICs, open gate resistors, or damaged PCB traces can interrupt the motor signal path completely. The console lights up, but the belt won’t move.

Speed commands may still reach the logic section, but no voltage reaches the motor terminals. In some cases, probing these sensitive circuits incorrectly can create additional damage. That’s why our technicians isolate and validate each component carefully during diagnostics.

2. Open or Partially Failed FETs in the FET Bank

Power FETs can fail open, preventing switched voltage from reaching the motor. This often occurs after overload conditions, jammed belts, or prolonged high-current operation.

When this happens, symptoms such as treadmill belt slipping may appear, or the motor may stop responding entirely. Many users assume it’s a mechanical issue and start researching how to replace a treadmill walking belt, when the actual problem is inside the control board.

3. Gate Drive Path Issues (Cracked Solder Joints, Damaged Traces)

Even when the driver IC is functioning properly, poor electrical connections can prevent gate voltage from reaching the FETs. Common issues include cracked solder joints, oxidized headers, or damaged PCB traces. These faults create unstable or missing drive output. During inspection, our technicians use magnification tools to identify and repair these problem areas accurately.

4. Safety, Sensor, or Feedback Lockouts

Modern treadmills include multiple safety systems and feedback protections. If a speed sensor, incline motor, or thermal switch fails, the firmware may intentionally block motor output.

In these situations, the console still works, but the drive signal is disabled. UpFix technicians test both hardware-level and logic-level lockouts to ensure nothing is overlooked during diagnostics.

UpFix’s Diagnostic Workflow for “Power but No Motor” Treadmill Boards

We follow a structured and repeatable process to identify and repair motor drive failures.

Step 1 – Verification and Baseline Testing

First, we verify the AC input, DC bus voltage, and logic-level power rails. We also confirm whether the console’s start and speed commands are properly reaching the control board.

If those inputs are correct, we know the problem exists farther downstream in the motor drive stage. This initial testing separates logic faults from power-switching failures.

Step 2 – Driver Circuit Analysis

Next, we measure the gate-drive signals traveling from the driver IC to the FETs.

If those signals are missing, we inspect the driver IC, optocoupler, and supporting resistors. If drive signals are present but the FETs still fail to switch, we focus on the power stage itself.

Our process uses isolation and controlled probing methods to reduce the risk of additional damage during testing.

Step 3 – FET Bank Testing and Rebuild

Each FET is removed and tested individually using specialized equipment. Failed components are replaced with higher-rated equivalents for improved durability.

If PCB pads or traces are damaged, we carefully rebuild and reinforce them. Thermal components such as heatsinks and insulators are also inspected and reinstalled using high-quality thermal compound.

Step 4 – System-Level Functional Testing

After rebuilding the motor drive stage, we test the board using load simulation equipment.

We verify startup behavior, torque response, and speed ramping performance. The motor must operate smoothly at all speeds without hesitation.

If any thermal or current-related issues appear during testing, we revise the repair before the board is released.

Case Study – Control Board with Power but No Motor Output

One treadmill repair clearly showed how complex these issues can be. Here is an example process for diagnosing and repairing a treadmill that is no longer working.

Symptom – Board Lights Up, Motor Dead

A customer sent in a treadmill board with full console function. But no matter the speed setting, the motor wouldn’t move. They were ready to order a new motor. We advised checking the control board first. It turned out to be the smarter choice.

Root Cause – Failed Driver Circuit and FET Bank

We diagnosed a dual failure: both the driver IC and several FETs had failed. The FETs showed signs of overheating and were no longer switching. The gate drive circuit had a failed output stage and no gate signals. We confirmed these failures with isolated testing and component removal. The board was clearly unable to drive the motor.

Repair – Rebuilding the Motor Drive Section

Our team replaced the driver IC and damaged FETs with rugged, high-efficiency parts. Traces were reinforced, and damaged vias were reworked. We also verified every path from logic to load to confirm no hidden issues. The board was then cleaned, sealed, and retested. The power stage worked flawlessly afterward.

Result – Stable Motor Output Under Load

We ran the board under simulated walking and running conditions. The motor delivered smooth torque, steady speed, and stable current draw. The treadmill resumed normal use with no glitches. There were no overheating issues or false shutdowns. Proper board repair prevented a costly, unnecessary motor swap.

Why Professional Board Repair Beats Motor Replacement?

Some failures look like bad motors but aren’t. Accurate testing matters. Here are some reasons why board repair is better than replacing the motor on a treadmill.

Avoid Misdiagnosing a Good Motor as “Dead”

It’s easy to assume the worst when the belt doesn’t move. But many motor replacement jobs waste money when the board is the real problem. Our diagnostics confirm whether your motor is healthy before replacing anything. That’s how we help you avoid unnecessary purchases. Every dollar saved goes toward smarter repairs.

Cost, Reliability, and Sustainability with UpFix

We save our clients up to 80% compared to replacements. We don’t just swap parts; we rebuild power sections to prevent future failures. Our boards are tested beyond basic functionality to ensure long-term performance. And by keeping your treadmill in service longer, you help reduce waste. Repairing is good business and good for the planet.

See a Real Treadmill Control Board Repair in Action

Understanding these failures is easier when you can actually see the components and the repair process up close. Watch how a treadmill control board is diagnosed and rebuilt at the component level:

This video highlights the exact issues discussed above: failed driver circuits, damaged FETs, and why a treadmill can power on but still have no belt movement. It also shows how UpFix technicians repair these boards instead of replacing the entire unit.

If your treadmill shows similar symptoms, this is the same board-level repair process our appliance repair team performs every day.

Authority and Trustworthiness

We offer warranty coverage, documented repairs, and consistent protocols. Our customers include gyms, hotels, and repair professionals nationwide. They trust us because our process works and we stand behind it. Every repair includes detailed notes and validation data. If your board fails, we don’t guess; we solve.

FAQs – When Your Treadmill Has Power but No Motor Output

Many people ask the same critical questions. Here's what you need to know.

• How do I know it’s the control board and not the motor? If the console works but the motor doesn’t run even with proper commands, the board is likely at fault.
• My treadmill starts, then shuts off after a second – is that the same issue? Yes, intermittent or short output can also indicate drive stage problems or sensor lockout.
• Do I need to send the entire treadmill or just the control/MCB? Only the motor control board is needed for repair. No need to ship the whole treadmill.
• How long does a typical “no motor output” repair take at UpFix? Most boards are repaired and returned within 3 to 5 business days after arrival.
• Will the repaired board need to be reprogrammed when I reinstall it? No. We return the board ready to use, with no setup required.
